Documents Installation Manual Created 2132020Quick Install Guide Created 5152018Wiring Diagram Created 8162019Data Sheet Created 6162020Disclaim.

Enphase iq7 wiring diagram. Connect the Enphase cabling to the AC branch circuit junction box. The IQ 7 Micro the IQ 7 Micro the IQ 7A Micro and the IQ 7X Micro have integrated ground and double. 2003 Hyundai Tiburon Radio Wiring Diagram.

In June of 2008 they introduced the first microinverter system for solar energy systems. Connect the microinverters to the Enphase cabling. It operates between the enphase devices or other pv system and the enphase enlighten web based monitoring and analysis software.

A wiring diagram is a streamlined standard photographic representation of an electric circuit. If you need to remove a sealing cap you must use the Enphase disconnect tool. The rest as they say is history with over 20 million inverters shipped Enphase Energy is the global leader in microinverter technology.

This voids the Enphase warranty. READ Aswc 1 Wiring Diagram Collection. The IQ 7 Micro and the IQ 7 Micro have integrated ground and double insulation so no GEC or EGC is required.

All rights reserved METER UP TO 16 IQ 7 MICROS or 13 IQ 7 MICROS PER 240 AC BRANCH CIRCUIT NOTE. Never mate microinverters to cables that have been left disconnected and exposed to wet conditions. Enphase Iq7 Wiring Diagram.

Kenwood Kdc248u Wiring Diagram. Provide support for the Enphase Q-Cable every 18m 6 feet. The IQ 7X requires a 96-cell PV module.

A wiring diagram generally gives details concerning the relative position and arrangement of devices and also terminals on the tools to assist in structure or servicing the device. Documents Installation Manual Created 2132020Quick Install Guide Created 5152018Wiring Diagram Created 3142018Data Sheet Created 8122020Disclaim. All rights reserved METER UP TO 16 IQ 7 MICROS or 13 IQ 7 MICROS PER 240 AC BRANCH CIRCUIT NOTE.

The Enphase Microinverter functions only with a standard compatible PV module with appropriate. Wiring Diagram Images Detail. 40 Sample Wiring Diagram.

Color Code 2000 Chevy S10 Radio Wiring Diagram. Enphase micro inverter wiring diagram Figure 7 Detail diagram of the Radian GSLC175 AC 120 240 GSLC. May 11 2018 by headcontrolsystem.

When looping the Enphase Q Cable do not form loops smaller than 475 12 cm in diameter. 2003 Toyota 4runner Radio Wiring Diagram. 1993 Dodge Dakota Fuel Pump Wiring Diagram.

The Enphase Microinverter is not protected from damage due to moisture trapped in cabling systems. Safety warnings are listed on the back of this guide. Enphase IQ 7 Micro Inverter compatible with 60-cell PV modules 208240 volt 250VA Peak Power MC4 DC connectors Female AC Connector IQ7-60-2-US.

Enphase Iq7 Wiring Diagram. Enphase Installation Map. ENPHASE IQ 7 and IQ 7 MICROINVERTER FIELD WIRING DIAGRAM 2017 Enphase Energy Inc.

Enphase Energy is a solar inverter technology innovator founded in California in 2006. All of them install quickly and easily. A wiring diagram is a streamlined standard photographic representation of an electrical circuit.

Enphase IQ 7A Micro Inverter compatible with 60 and 72-cell PV Modules 208240 volt 366VA Peak Power MC4 DC Connectors IQ7A-72-2-USEnphases nex. Indicated in the diagram on the door of the unit. It reveals the components of the circuit as simplified shapes as well as the power as well as signal connections between the tools.

The Enphase IQ 7 Micro is compatible with 60-cell PV modules and the IQ 7 Micro supports PV modules with 60 or 72 Cells. ENPHASE IQ 7 and IQ 7 MICROINVERTER FIELD WIRING DIAGRAM 2017 Enphase Energy Inc. The DC circuit is isolated and insulated from ground and.

1999 Chevy Suburban Radio Wiring Diagram. All rights reserved METER UP TO 16 IQ 7 MICROS 13 IQ 7 MICROS 11 IQ 7A MICROS or 12 IQ 7X MICROS PER 240 AC BRANCH CIRCUIT NOTE. It reveals the parts of the circuit as simplified forms as well as the power and signal links in between the gadgets.

Enphase energys iq 7 microinverter was designed for modern high powered solar modules and is compatible with 60 cell panels up to 350 watts. To install Enphase IQ Series Microinverters read and follow all warnings and instructions in this guide and in the Enphase IQ 7 and IQ 7 Microinverter Installation and Operation Manualat. 2 INSTALLATION Part 1 It is a best practice to complete Installation Part 1 before installing Enphase Microinverters andor Batteries.

August 9 2018. The Enphase Microinverter models listed in this guide do not require grounding. When installing the Enphase Q Cable secure any loose cable to minimize tripping hazard.

Their microinverters boast high efficiency ratings industry leading warranties. Terminate the unused end of the Enphase cabling and seal any unused cable connections. 41 IQ 7 IQ 7 IQ 7X IQ 7A Micro Installation and Operation.

Connect the PV Modules to the microinverters. 1400 Bakkie Nissan 1400 Wiring Diagram Free Download. The IQ 7 Micro and the IQ 7 Micro have integrated ground and double insulation so no GEC or EGC is required.

Wire colors black l1 red l2 8 internal view enphase connector rating enphase connectors on the cable assemblies in the following table have a maximum current of 20 a a maximum ocpd of 20 a and maximum ambient. Choose a location for the IQ Combiner 3 A Install the IQ Combiner 3 in a readily accessible location at least three feet 91 cm off the ground if outdoors. Collection of enphase micro inverter wiring diagram.

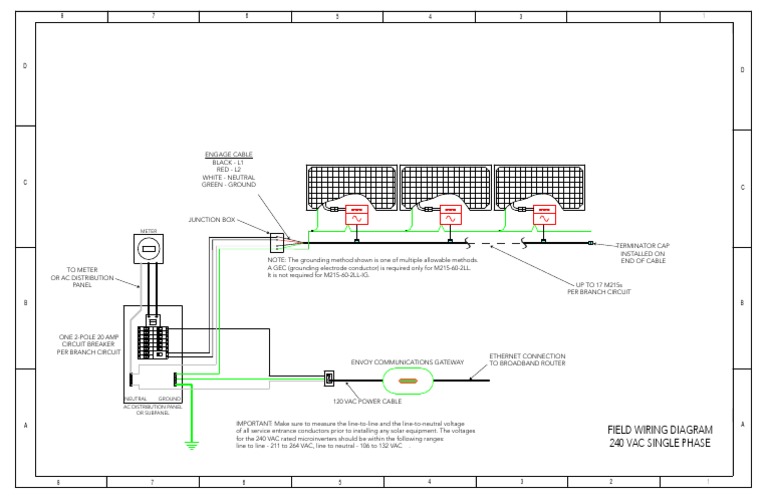

Planning for Microinverter Installation. ENPHASE IQ 7 IQ 7 IQ 7A and IQ 7X MICROINVERTER FIELD WIRING DIAGRAM 2019 Enphase Energy Inc. The DC circuit is isolated and insulated from ground and.
