2G 2g dsm 95-96 97-99 wiring schematics ecu pinouts diagrams tcu diagrams ECT. Now the car is an 00 Fed.

How To Wire A 2g 4g63 Engine Hotrodwiki

One is a wiring diagram for a 1990 4G63 DSM.

2g dsm wiring diagram. Please note that the diagrams are all shown as you are looking into the ECU connectors on the ECU itself with the male pins pointing out at you. 95-99 2G DSM Plug Play Tucked Mil-Spec Engine Harness. Automatic dsm s.

Snip your 1G MAF plug off of your harness then wire up the wires accordingly. This page contains basic wiring information for the ECU connector in a 1G and 2G DSM. Mitsubishi Eclipse 92-94 electrical diagrams and w.

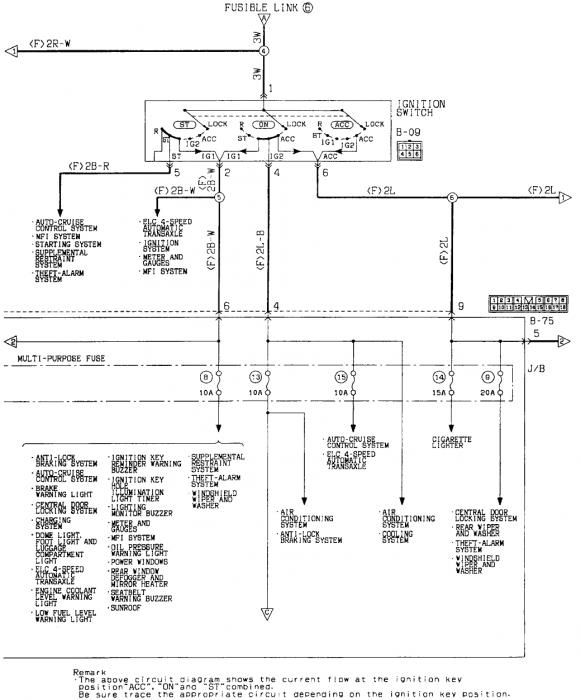

The fuel pump itself says it grounds to a connection at the front floor crossmember The ecu ecu is located in the engine bay drivers frontactivates the relay on the white red wire grounds out a IGN signal blackwhite wire the fuel pump relay gets its power for the fuel pump from the redblack wire which power comes from a fuse in the engine compartment fuserelay box. Our ignition switches have 6 different pins. Many people will assume the diagrams show you looking into the wiring connectors in the car.

Wiring Harnesses 1G DSM 91-94 Eclipse Turbo 2G DSM 95-99 Eclipse Turbo EVO 1-3 92-95 Lancer Evolution EVO 4-6 96-00 Lancer Evolution EVO 8-9 03-06 Lancer Evolution EVO X 08-15 Lancer Evolution GVR4 91-92 Galant VR4 JZA80 93-98 Toyota Supra R32 GTR 89-94 Nissan Skyline 4G63 Swapped 2G NT Chassis 95-99. Rb 7748 4g63 Wiring Harness Free Diagram. Interconnecting wire routes may be shown approximately where particular receptacles or fixtures must be upon a.

The second generation DSM MAF is far larger and offers a better surface area ratio for air to pass through. The wiring diagram shows the ign 1 2 3 4cyl wires then it has a ground on the diagram and a aux. With that said hopefully some people will find these diagrams beneficial and if so let me know.

Mitsubishi Eclipse 2g Dsm Service Manual - Dsm 2g. Mitsubishi 4D56 Engine Service manual Download. 1g Dsm Alternator Wiring Diagram.

Removing honeycombs isnt recommended but it can get the job done. Honda Ignition Coil Wiring Diagram Diagrams Exact Hen. Most importantly it shows the MPI relay which is the most challenging part to understand.

Wire colors could be different on the main wiring harness side. The other is the wiring diagram for a 1991-94 4G63 DSM. Pinout above is on just the ignition side.

I have all the speaker wires separated now and only have a whiteblack wire which I am assuming is the power antenna a greenwhite wire that is possibly the illumination wire a blackyellow wire that is possibly the ignition switch possibly all time hot a blue wire that is ACC and a mysterious redblack wire. The diagrams do not illustrate the wiring connectors in the car. Each one shows how the wiring harness needs to be setup for an engine swap.

Repair guides stereo wiring diagram 2000 mitsubishi eclipse harness on 95 2002 engine 94359a infinity how to 01 galant completed 53afb 91 eagle. This page contains basic wiring information for the ECU connector in a 1G and 2G DSM. The Official 4g63 Wiring Thread Bring It Www Hotrodcoffee Com.

Mitsubishi F9Q Series Diesel Engine Service Repair. Please note that the diagrams are all shown as you. The diagram below shows you which individual wire from the 1G MAF wiring goes to which pin of the 2G plug.

Here is the 4G63 DSM wiring diagram schematic that I made. - If the black wire in the green circle in the pic is surely grounded. As you already tried another cluster I doubt this first - If the wire from ECU pin 66 has some voltage with a stock ECU connected.

Results 1 - 48 of Axle set 4bolt LSD manual rear 1G AWD DSM Eclipse Talon Laser Alternator Water Pump Pulley DSM 90 - 94 Eclipse Talon Laseer. It seems this was the answer most of you wanted so we found a solution on how to mate the 1G motor utilizing the 1G cam and crank sensor trigger assembly to the stock 2G computer. Wiring Diagram Engine Regulator Full For Android.

Get a 2G MAF plug at the junk yard or whatever and make sure you leave yourself several inches of wire. Space Wagon 99 electrical wiring diagrams. I see you are hacking the harness so you should check all wiring related to the reed switch and the reed switch itself.

Image Here is the 4G63 DSM. The main wiring harness plugs into the ignition harness. Architectural wiring diagrams undertaking the approximate locations and interconnections of receptacles lighting and surviving electrical facilities in a building.

This thread is going to solve all the mysteries of the 4G63 wiring. Because youre using ECMLink you can leave this wire disconnected but isolated from ground with some heatshrink or electrical tape and simply use ECMLinks narrowband simulation function instead. Second wiring the coil packs coil on plug.

Each one shows how the wiring harness needs to be setup for an engine swap. Electrical section of the factory service manual for mitsubishi eclipse by Mitsubishi ECLIPSE 2G Service Manual. Ford Cop Ignition Wiring Diagrams Diagram B68 Synergy.

The other is the wiring diagram for a 1991 94 4g63 dsm. The YELLOW wire is defined by default to have a mapping of 0V 735 AFR 05. Mitsubishi Colt Lancer the Sixth generation 1992.

This MAF has been proven to keep up with air flow required to put down well over 450 horsepower so lets get to wiring our 2G maf in a 1G. The BROWN wire from the LC-2 is defined by default as the narrowband simulation output of the LC-2. Since the wiring harness on the car is fairly butchered I just want a get a entire engine wiring harness.

1G in a 2G So here it is finally an easier way for you 2G owners to get away from the dreaded crankwalk. The view of pins in the above diagram is on the ignition side of the harness. Below is a simple diagram of the pin layout from the harnessplug.

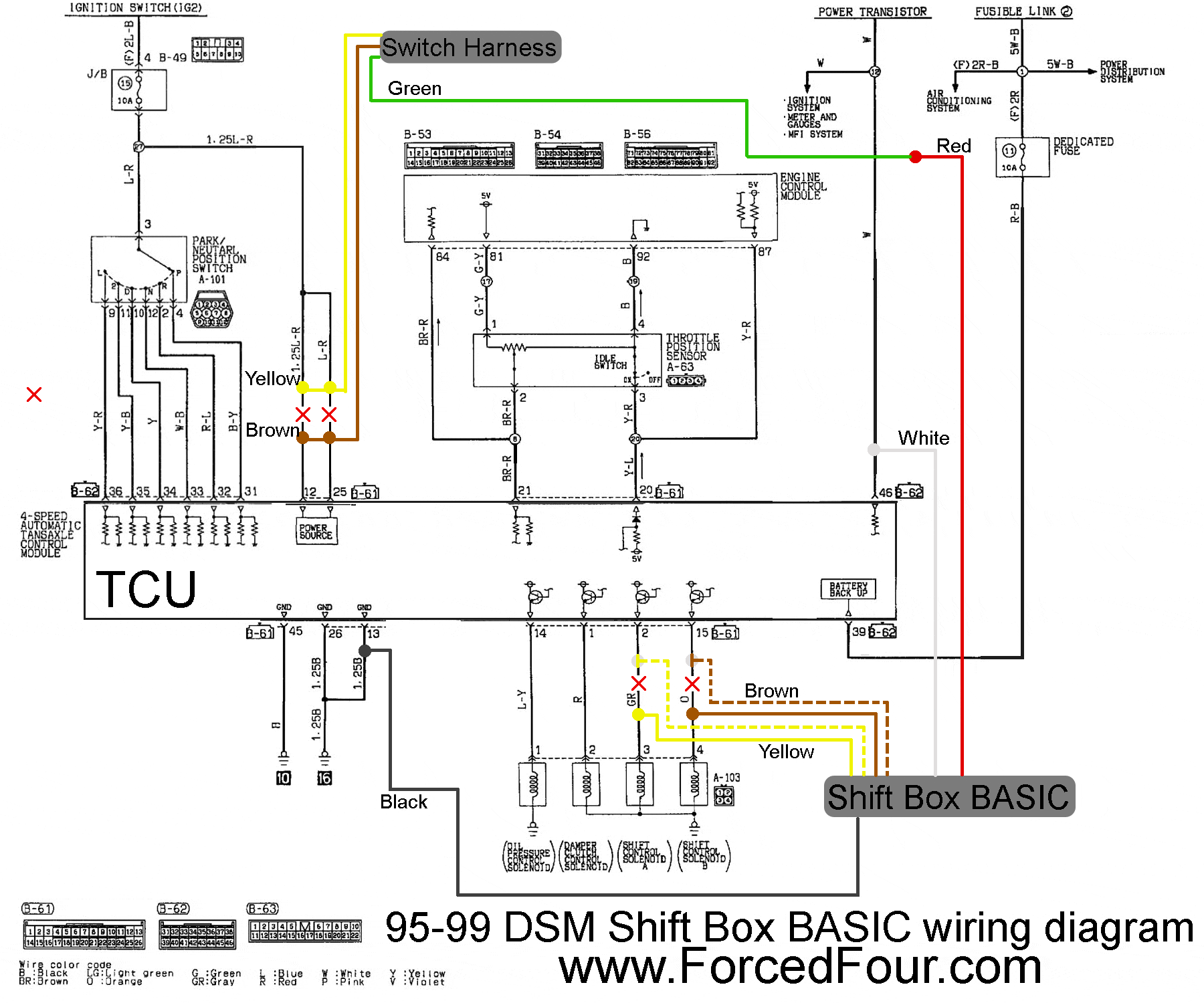

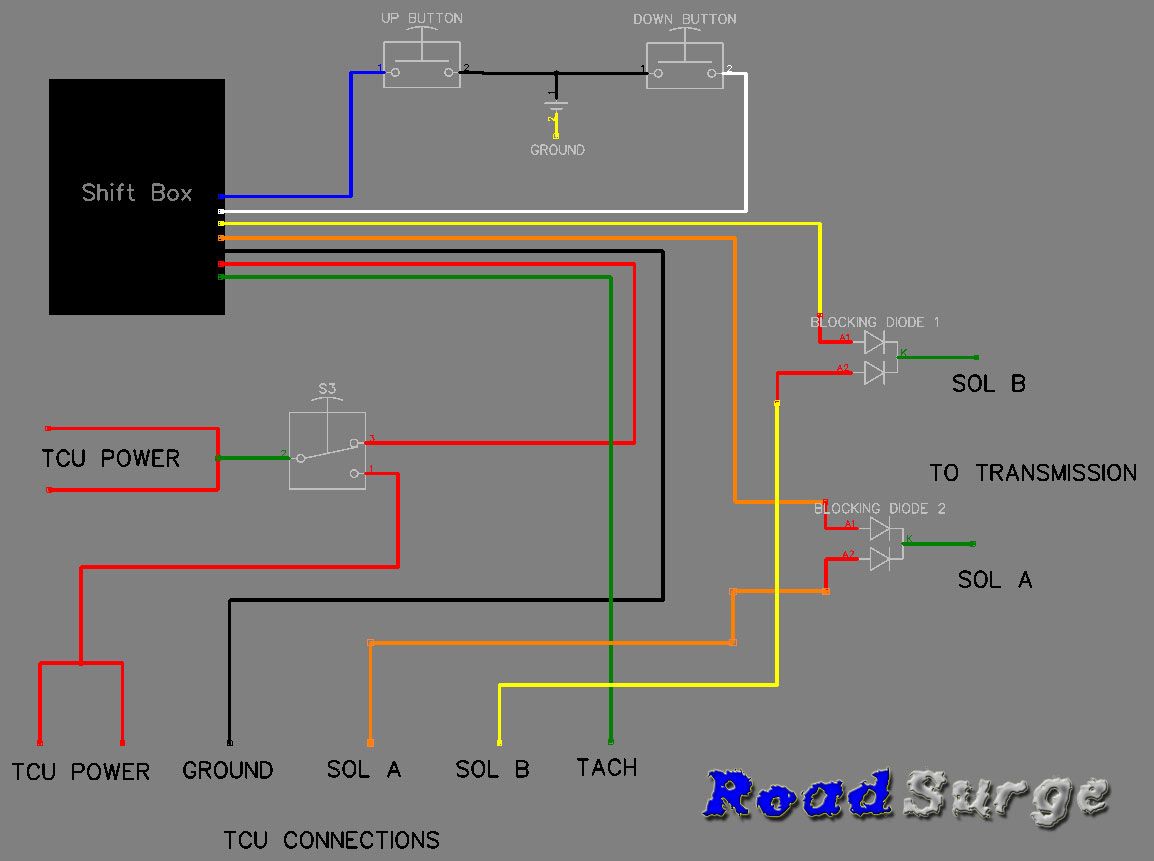

Double Check Shift Box With Tcu Wiring Dsmtuners Com
